Hokarob Multi-directional Rotary Table MRT350

  • Fully supported in IRBCAM with easy calibration and programming procedures.
  • Own controller and drive unit. It requires no drive unit in the robot controller or controller software options to unlock.
  • Robust design: high stiffness, low backlash, maintenance-free. Quality components from suppliers (motor, planetary gear).
  • Low backlash enables a rigid and locked position while machining.
  • Can be mounted in a vertical or horizontal position. Perfect for jobs requiring multi-sided machining and increased reachability.
  • It can be reused and moved between many robot brands and controllers, representing a sound, long-term investment.
  • Price: 12,900€ + VAT including 12 months of IRBCAM Professional Subscription.

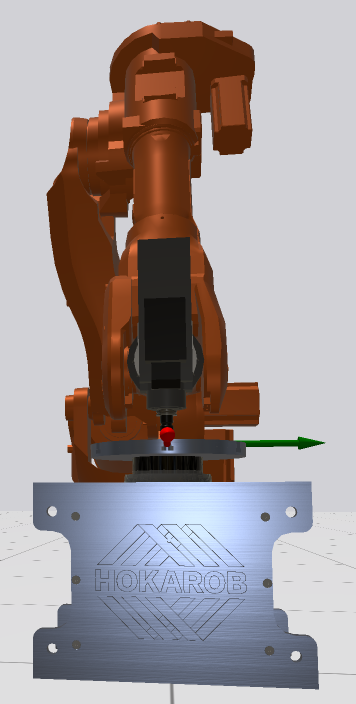

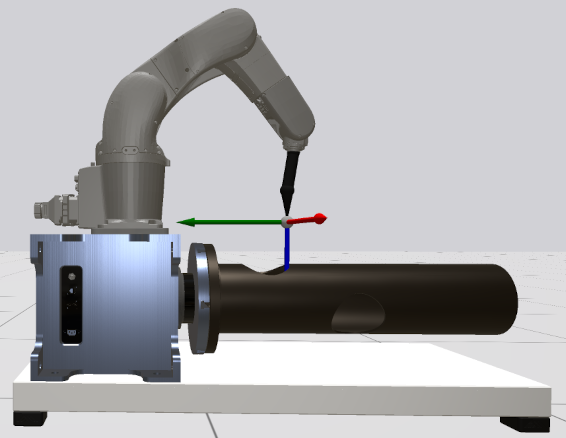

Front view of Robot and Hokarob RT_300_350 Side view of Robot and Hokarob RT_300_350

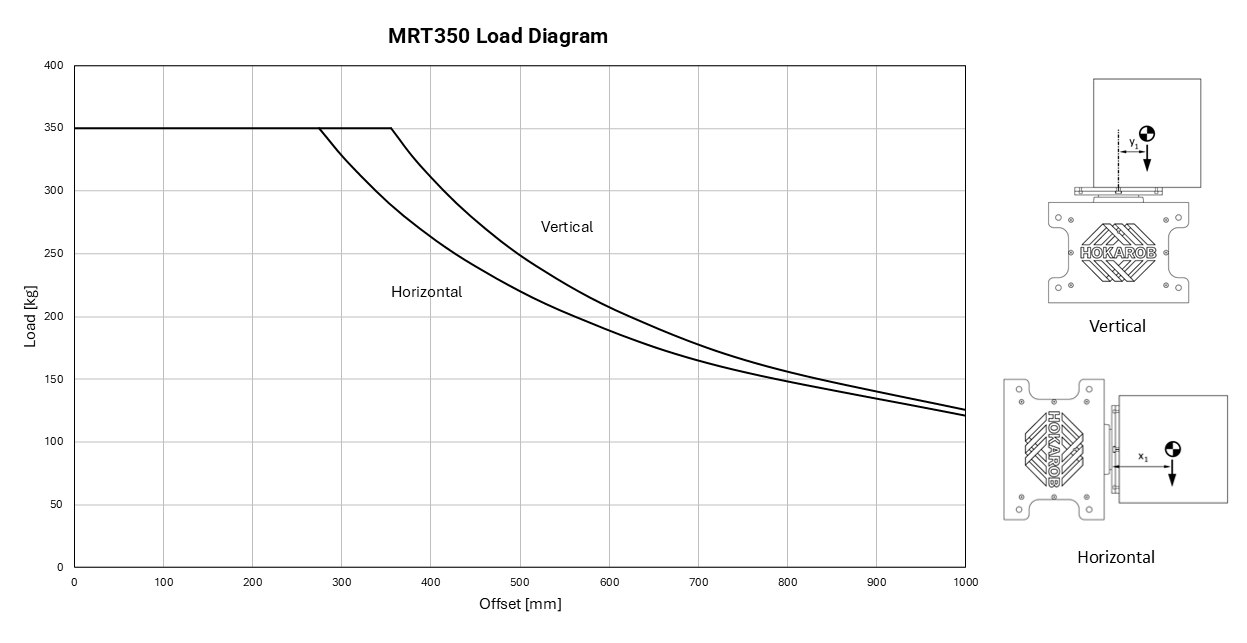

Load Diagram of Hokarob Rotary Table MRT350

Technical Specifications:

  • Communication protocols: Indexed motion using RS232. Other protocols on request.
  • Integrated emergency stop signal with the robot.
  • Integrated adjustable leveling feet with through-hole mounting with 12mm bolts.
  • Maximum payload: 360kg, see load diagram above.
  • Size (L/W/H): 560mm, 400mm, 452mm. Weight: 94kg
  • Backlash: < 1 arc min or less than 0.05mm at the table edge.
  • Maximum velocity: 150 deg/s or 25 RPM.
  • Maximum torque: 230 Nm. Holding torque: 900 Nm.
  • Optional fixture plate: Ø350 aluminium plate with 6X 14mm T-slots.
  • Power supply: Single-phase AC, 230V at 50Hz.
